Description

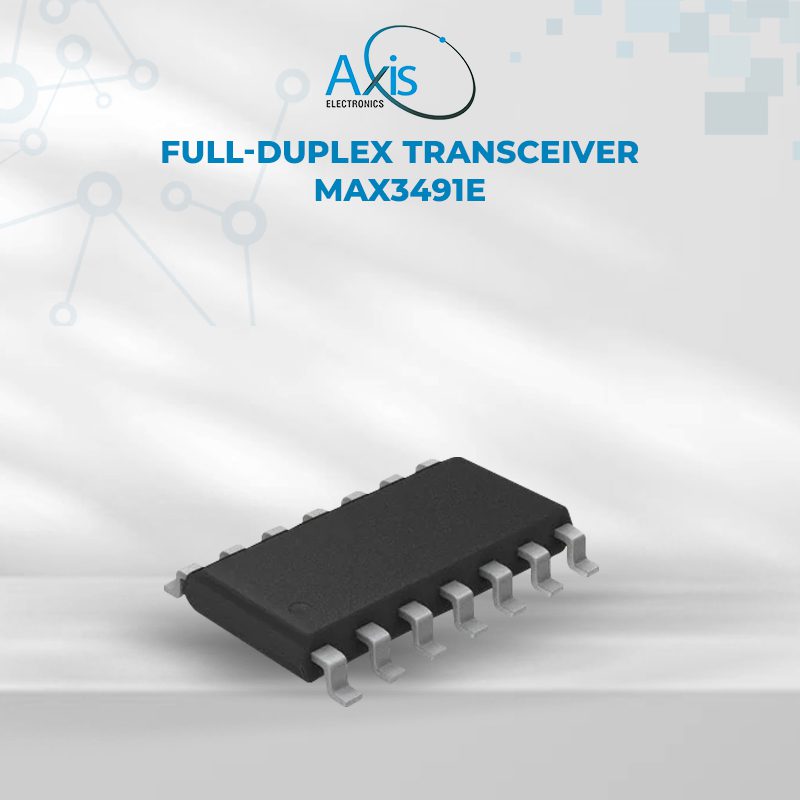

The MAX3491E is a low-power, 3.3 V powered, ±15 kV ESD-protected full-duplex RS-485/RS-422 transceiver designed for robust industrial and communications applications. onlyfans..com It integrates one driver and one receiver in a 14-pin SOIC (NSOIC) surface-mount package, offering reliable differential signaling support for multi-node networks. The device supports high-speed data transfer and features thermal shutdown and current-limit protections to improve robustness in noisy or fault-prone environments.FEATURES

• Data Rate: Up to 12 Mbps
• Supply Voltage: 3.0 V – 3.6 V (typical 3.3 V)
• ESD Protection: ±15 kV (HBM), ±8 kV (contact), ±15 kV (air gap)
• Operating Temp. Range: −40 °C to +85 °C (extended grade)
• Common-Mode Range: −7 V to +12 V
• Shutdown Current: ~2 nA
• Communication Mode: Full duplex

SPECIFICATION

• Dimension: 8.75 × 4 × 1.5 mm
• Additional information
• Gross weight: 0.8 g
• Manufacturer part number: MAX3491E
