Description

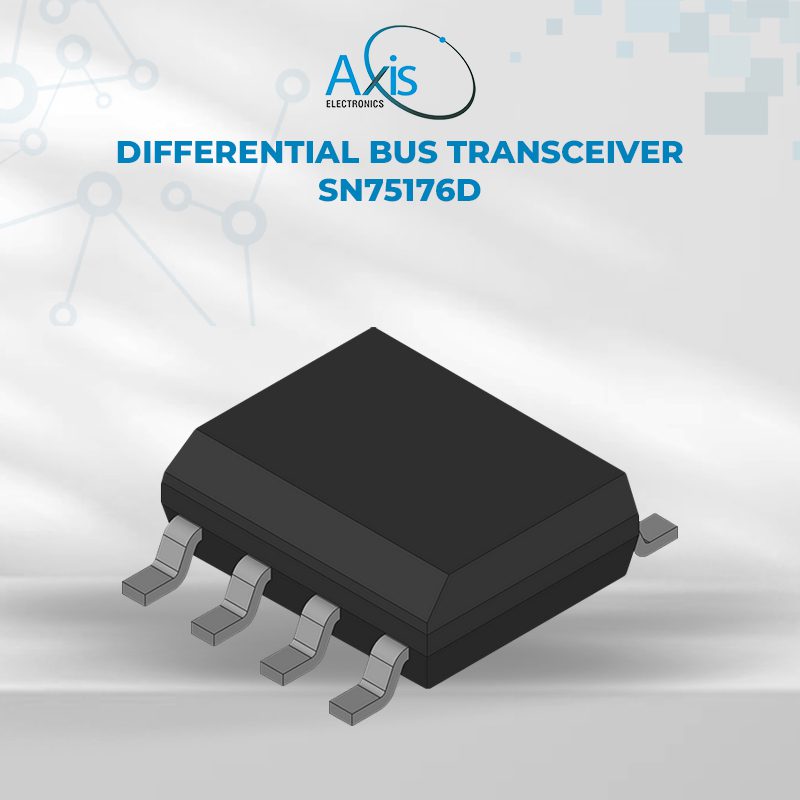

SN75176D is a monolithic differential bus transceiver IC designed for bidirectional data communication on multipoint bus transmission lines. It is specifically engineered for balanced lines and meet the established serial data transmission standards:

ANSI TIA/EIA-422-B
ANSI TIA/EIA-485-A
ITU Recommendation V.11 / X.27

The device integrates both a 3-state differential line driver and a differential input line receiver in a single package, operating from a single +5 V power supply. It offers separate driver and receiver enable controls that can also be tied together for direction control.

FEATURES

• Technology: Bipolar
• Supply Voltage: 4.75 – 5.25 V
• Nominal Voltage: 5 V
• Driver Current Capability: ±60 mA
• Receiver Input Impedance: ≥ 12 kΩ
• Operating Temperature: 0 °C to +70 °C (Commercial)
• Output Type: Differential, 3-STATE
• Input Type: Differential Schmitt Trigger
• Terminal Finish: Ni/Pd/Au
• RoHS Compliant: Yes
• Mounting Style: Surface Mount

SPECIFICATION

• Dimension: 4.9 × 3.9 × 1.75 mm
• Additional information
• Gross weight: 0.0726 g
• Manufacturer part number: SN75176D
