Description

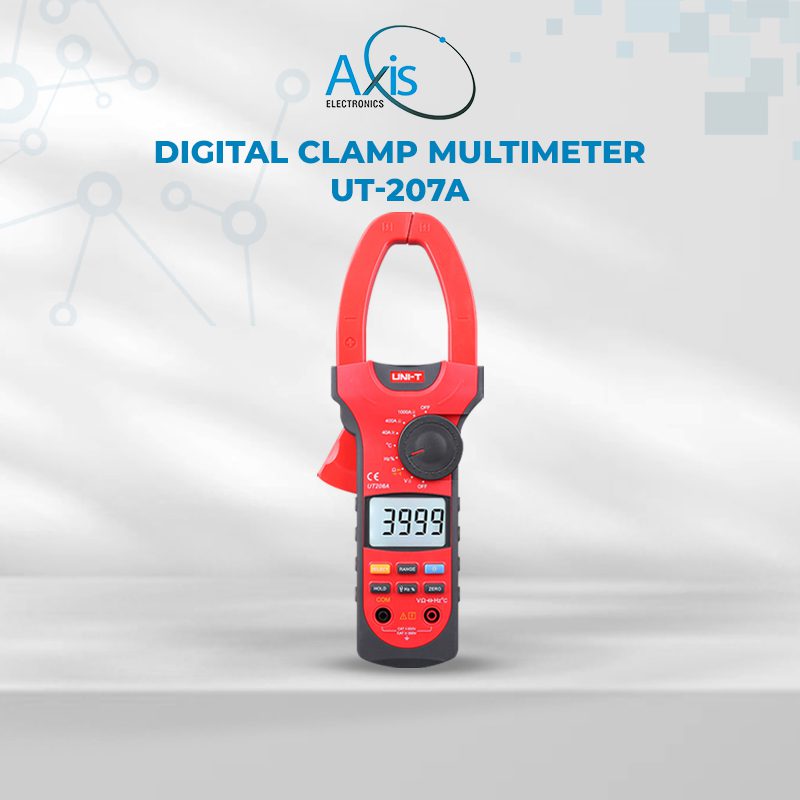

The UT-207A Digital Clamp Multimeter is a professional True RMS clamp meter designed for safe and accurate measurement of AC/DC current without breaking the circuit. It combines clamp current measurement with full multimeter functions, making it ideal for electrical maintenance, industrial inspection, HVAC servicing, and field troubleshooting.
Equipped with a clear digital display, stable performance, and comprehensive protection features, the UT-207A ensures reliable operation and enhanced user safety when working with high-current and high-voltage systems.
FEATURES
- True RMS measurement
- AC/DC current measurement via clamp
- AC/DC voltage measurement
- Resistance measurement
- Continuity test with audible buzzer
- Diode test
- Data hold function
- Max / Min measurement
- Relative (REL) mode
- Large LCD display for clear readings
- Input protection for safe operation
- Ergonomic clamp design for easy one-handed use
SPECIFICATION
- AC current (clamp): up to 1000 A
- DC current (clamp): up to 1000 A
- AC voltage: up to 750 V
- DC voltage: up to 1000 V
- Resistance: up to 60 MΩ
- Frequency: up to 10 MHz
- Continuity: audible buzzer
- Diode test: yes
- Display type: LCD
- Power supply: 1.5 V batteries (AAA) × 3
- Jaw opening: approx. 42 mm
- Operating temperature: 0°C to 40°C
- Storage temperature: −10°C to 50°C
- Dimensions: approx. 286 × 90 × 47 mm
- test leads
- Additional information
- Gross weight: 650 g
- Manufacturer part number: UT-207A
