Description

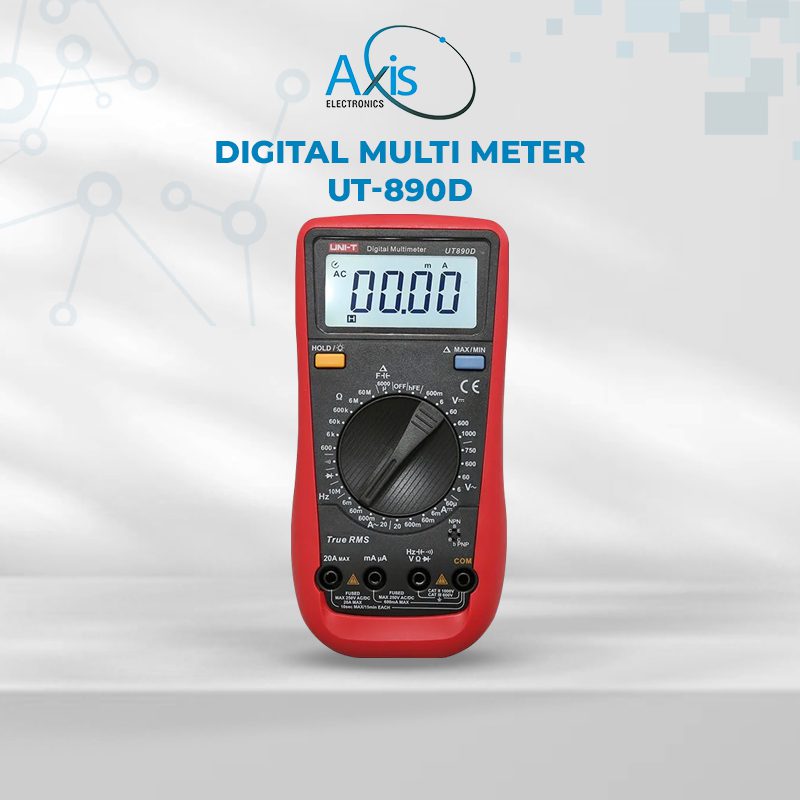

UT-890D is a test tool used to measure two or more electrical values principally voltage (volts), current (amps) and resistance (ohms). UNI T True RMS DMM is a standard diagnostic tool for technicians in the electrical/electronic industries. The UNI-T UT890D 6000- count true RMS digital multimeters are designed with a large LCD display. UNI-T Digital Multimeter UT890 is ergonomic design, comfortable and solid. UT890D digital multimeter is a cheap accurate multimeter for very tight budgets.

FEATURES

• Display Counts: 6000
• True RMS
• LCD backlight
• Data hold
• REL function for Capacitance measuring. Minimum resolution rate 1pF, Maximum measuring range up to 6000uF.
• Overload protection up to 600V for Capacitance, Resistance, Buzzer, Diode, and Frequency measuring.
• High accurate frequency measuring function. Minimum resolution rate 0.001Hz, Unique
• (MAX-MIN) value calculate function.
• Frequency respond is (40Hz~1KHz) (Sine Wave, triangular wave)

SPECIFICATION

• Power supply: 9V6F22 Battery
• Input Impedance for DC Voltage Measurement: 10M
• Display: 63mm × 29mm
• Safety grade: CE / CAT.II 1000V / CAT.III 600V
• DC voltage: 600.0mV / 6.000V / 60.00V / 600.0V / 1000V
• AC voltage: 6.000V / 60.00V / 600.0V / 750V
• DC Current: 60.00uA / 6.000mA / 60.00mA / 600.0mA / 20A
• AC Current: 6.000mA / 60.00mA / 600.0mA / 20A
• Resistance: 600.0Ω / 6.000kΩ / 60.00kΩ / 600.0kΩ / 6.000MΩ / 60.00MΩ
• Capacitance: 6.000nF / 60.00nF ~ 600.0uF / 6000uF
• Frequency: 9.999Hz ~ 9.999MHz
• Frequency Measuring range: 10Hz ~ 10MHz / ≤100kHz: 100mVRMS / ≤30VRMS / >100kHz ~ 1MHz / 200mVRMS / ≤30VRMS / >1MHz / 600mVRMS / ≤30VRMS
• Dimensions: 186 × 91 × 39 mm
• temperature probe
• test leads
• Additional information
• Gross weight: 330 g
• Manufacturer part number: UT-890D
