Description

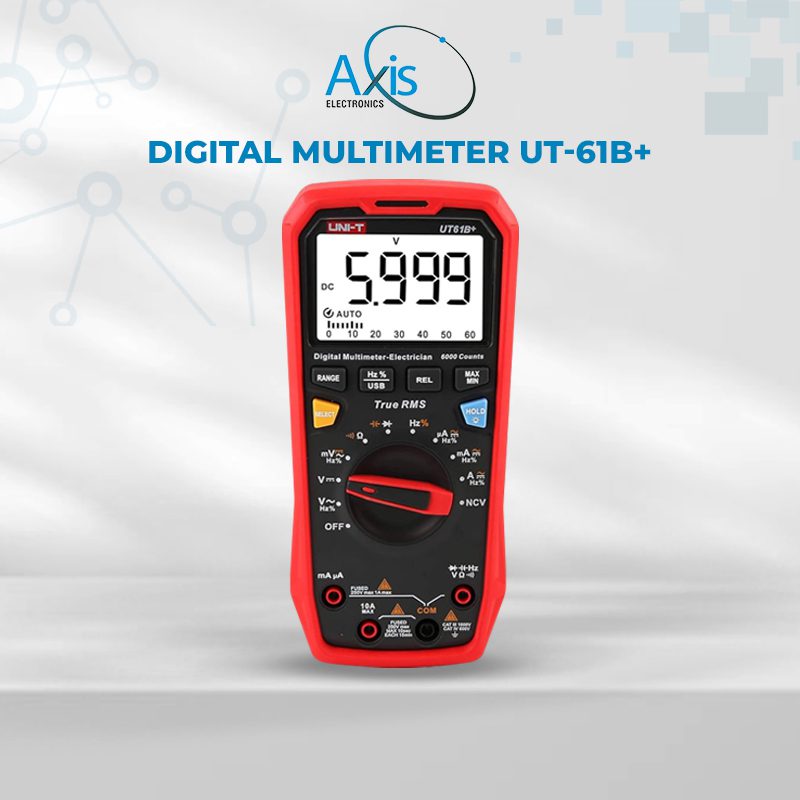

The UT-61B+ Digital Multimeter is a reliable True RMS measuring instrument designed for accurate electrical testing and troubleshooting. Equipped with audible and visual alarms, it provides enhanced safety when working with high voltage, current, and temperature measurements. With a high-resolution display and comprehensive measurement functions, the UT-61B+ is suitable for laboratory use, field maintenance, and professional electrical applications.
FEATURES
- Display count: 6000
- True RMS measurement
- Bandwidth: 40 Hz – 500 Hz
- Data hold function
- Backlit display
- Max / Min measurement
- Relative (REL) mode
- USB communication interface
- Input protection
- Diode test
- Continuity test with buzzer
- NCV (Non-Contact Voltage) detection with audible and visual alarm
- Analog bar graph: 31 segments
SPECIFICATION
- AC voltage: up to 1000 V
- DC voltage: up to 1000 V
- AC current: up to 10 A
- DC current: up to 10 A
- Resistance: up to 60 MΩ
- Capacitance: up to 60 mF
- Frequency: up to 10 MHz
- Duty cycle: 0.1% – 99.9%
- Power supply: 4 × 1.5 V batteries (R03 / AAA)
- Dimensions: 190 × 90 × 50 mm
- temperature probe
- test leads
- Additional information
- Gross weight: 350 g
- Manufacturer part number: UT-61B+
