Description

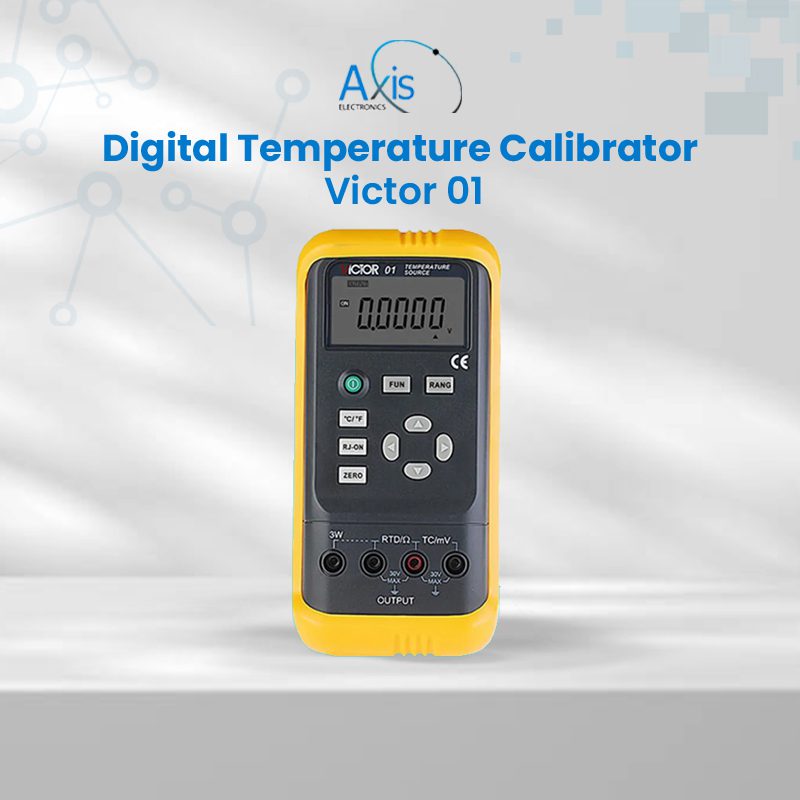

VICTOR 01 Temperature Calibrator output 100 mV/1000 mV instrument calibration process output thermo couple / RTD signal VC-01.

FEATURES

• Maximum allowable voltage : 30 V ( between each terminal and each terminal to ground )
• Operating temperature range : 0 C ~ 50 C
• Operating humidity range : 80% RH
• Storage temperature range : – 10 C ~ 55 C
• Storage humidity range : 90% RH

SPECIFICATION

• Power : 9 V battery (ANSI / NEDA 1604 A or IEC 6 LR 619 V alkaline )
• Dimension: 200 × 100 × 40 mm
• temperature probe
• test leads
• Additional information
• Gross weight: 550 g
• Manufacturer part number: VICTOR 01
