Description

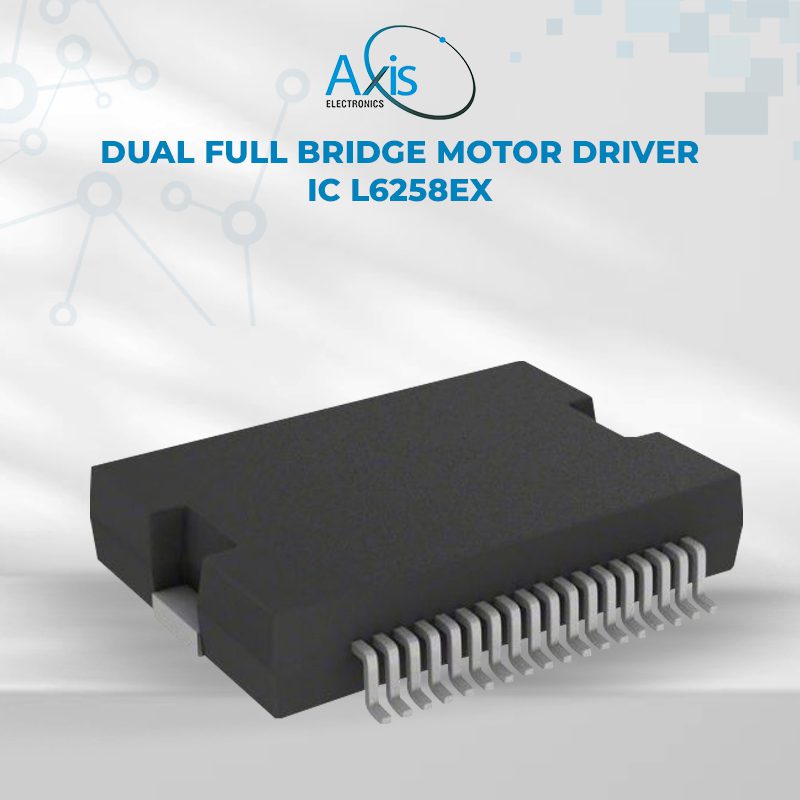

The L6258EX is a dual full bridge motor driver IC realized in BCD technology, designed for universal motor control applications. It integrates both control and power stages in one device, letting you drive bipolar stepper motors (both windings) or bi‑directionally control two DC motors. The integrated DMOS power stage includes current recirculation diodes, PWM current control, and protection features, simplifying design and improving reliability.

FEATURES

• Supply Voltage: 4.75 V → 5.25 V
• Load Voltage: 12 V → 40 V
• Output Current: Up to 1.5 A per winding continuous
• Interface: Parallel
• Step Resolutions Supported: 1, 1/2, 1/4, 1/8, 1/16
• Operating Temperature: Up to 150°C
• Technology: DMOS (Double‑Diffused Metal Oxide Semiconductor)
• Mounting Style: Surface Mount

SPECIFICATION

• Dimension: 16 × 11 × 3.6 mm
• Additional information
• Gross weight: 0.454 g
• Manufacturer part number: L6258EX
