Description

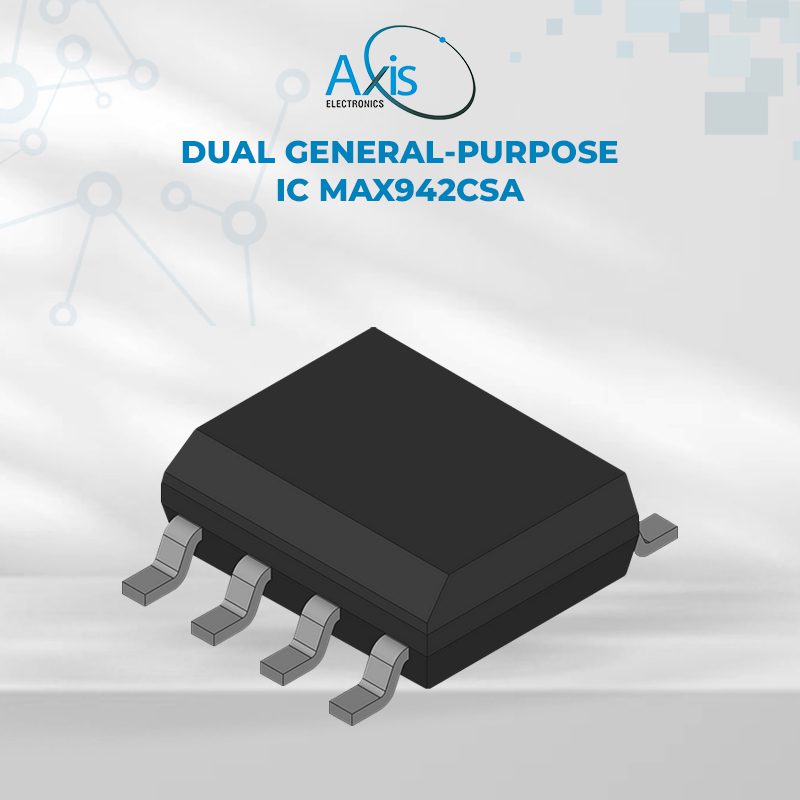

The MAX942CSA is a dual general‑purpose analog comparator IC designed for use in low‑power, high‑speed comparison applications. It operates from a single supply voltage and provides two independent comparators with CMOS/Push‑Pull/TTL‑compatible outputs. It’s suited for systems powered from 3 V to 5.5 V where fast response and low current consumption are required.
FEATURES
- Supply voltage: 2.7 V – 5.5 V
- Input offset voltage: ≤ ~2 mV @ 5.5 V
- Input bias current: ≤ ~0.15 µA @ 5.5 V
- Quiescent current: ~600 µA total
- CMRR / PSRR: ~81.94 dB typ
- Propagation delay: ~80 ns max
- Operating temperature: 0 °C to +70 °C
- Mounting Style: Surface Mount
SPECIFICATION
- Dimension: 4.9 × 3.90 × 1.75 mm
- Additional information
- Gross weight: 0.57 g
- Manufacturer part number: MAX942CSA
