Description

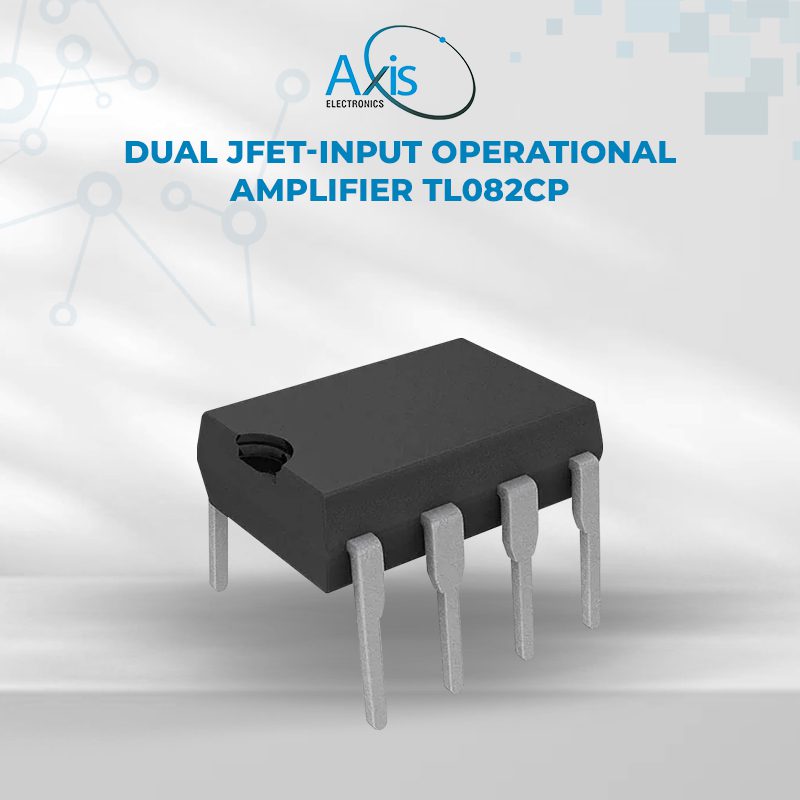

The TL082CP is a dual high-speed, JFET-input operational amplifier manufactured by Texas Instruments. It combines two high-performance op amps in a single 8-pin package, offering low input bias and offset currents, a relatively wide bandwidth, and high slew rate. The device uses TI’s BI-FET II™ technology, which provides high input impedance and low noise, making it suitable for a broad range of analog signal processing applications including active filters, integrators, audio circuits, and instrumentation.

FEATURES

• Number of Channels: 2
• Gain Bandwidth: 3 MHz
• Slew Rate: 13 V/µs
• Input Offset Voltage: ~6 mV
• Input Bias Current: ~200–400 pA
• Input Noise Voltage: ~18 nV/√Hz
• Supply Voltage Range: 7 V – 36 V (single), ±3.5 V – ±18 V (dual)
• Operating Temperature Range: ~0 °C to +70 °C (commercial)
• Output Current: ~10 mA per channel
• CMRR: ~70–86 dB
• Technology: BI-FET II™ / JFET Input

SPECIFICATION

• Dimension: 9.81 × 6.35 × 3.3 mm
• Additional information
• Gross weight: 0.44 g
• Manufacturer part number: TL082CP
