Description

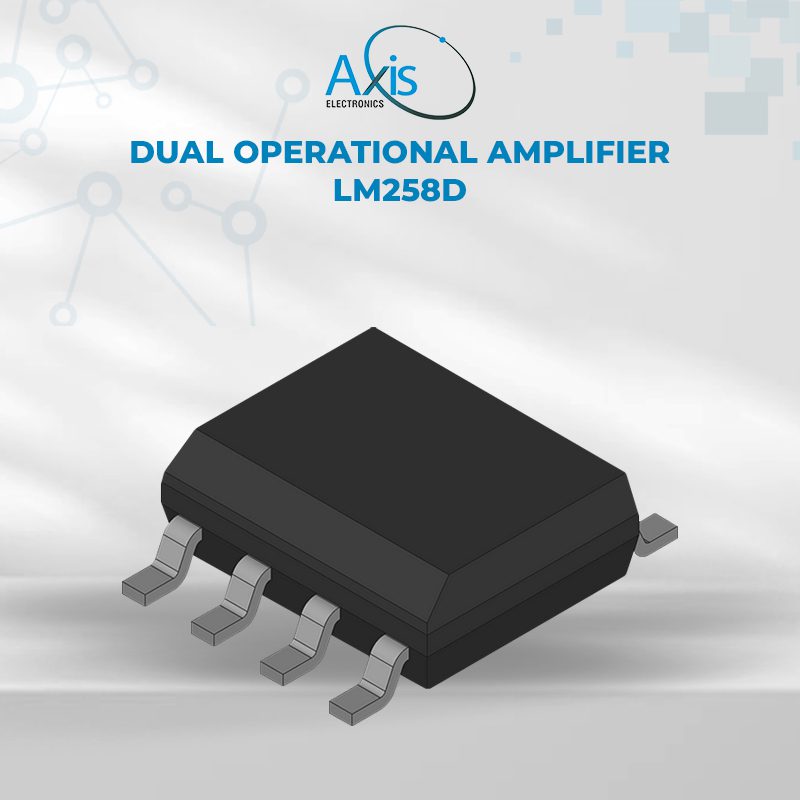

LM258D is a dual high-gain frequency-compensated operational amplifier designed to operate from a single supply over a wide range of supply voltages. It contains two independent op-amps in one 8-pin SOP/SOIC package and is suitable for general analog signal processing tasks. Typical applications include signal conditioning, filters, sensor amplifiers, and control systems.

FEATURES

• Supply Voltage Range: 3 V to ~30–32 V
• Input Offset Voltage: ~3 mV
• Input Bias Current: ~20 nA
• Slew Rate: ~0.6 V/µs
• Gain-Bandwidth Product: ~1.1 MHz
• Output Current: ~40 mA per channel
• Operating Temp: −40 °C to +105 °C
• Mounting Style: Surface Mount

SPECIFICATION

• Dimension: 4.9 × 3.9 × 1.75 mm
• Additional information
• Gross weight: 0.069 g
• Manufacturer part number: LM258D
