Description

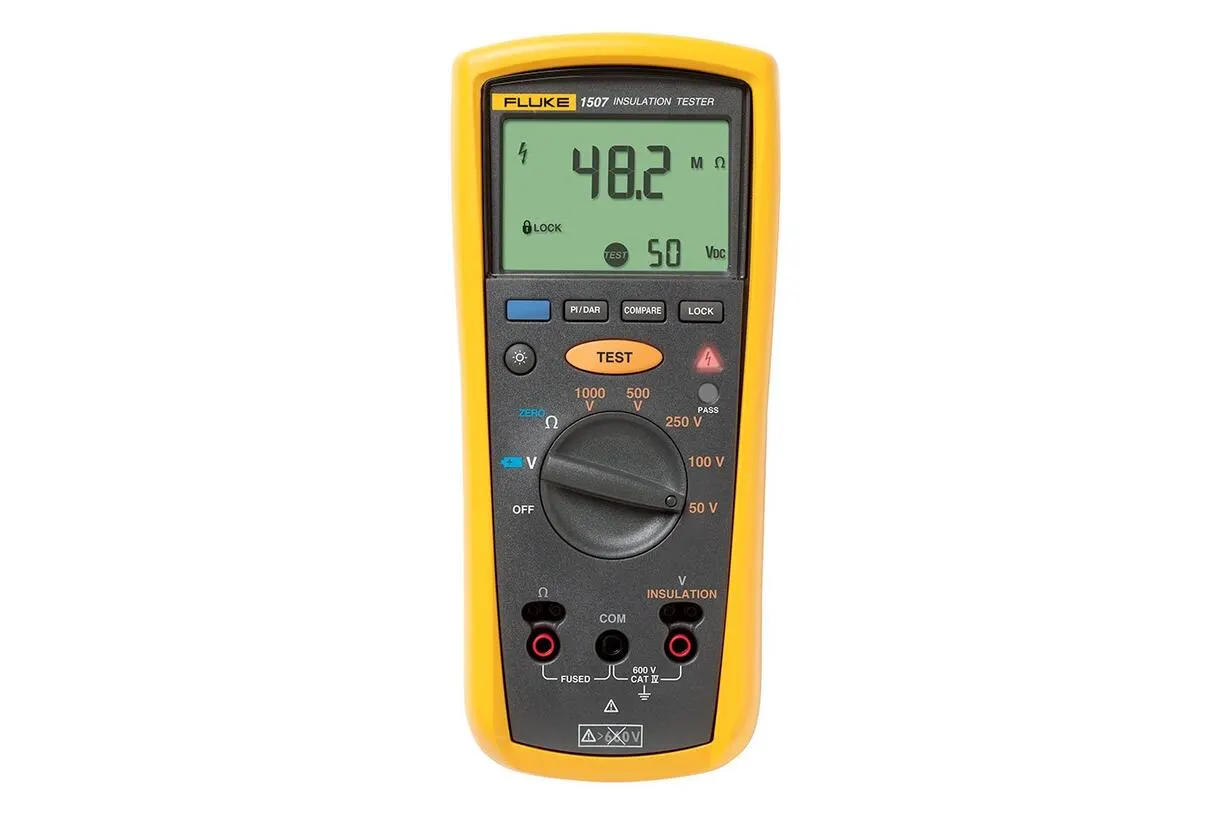

The Fluke 1507 is a versatile, compact, handheld insulation resistance tester built for advanced industrial and electrical testing. With five selectable test voltages and automatic PI/DAR calculations, it is the go-to instrument for commissioning, troubleshooting, and preventive maintenance applications across Karachi and Pakistan.
Equipped with a Polarization Index (PI) and Dielectric Absorption Ratio (DAR) auto-calculation, the 1507 goes beyond basic insulation testing to provide detailed diagnostics on motor windings, cables, and electrical insulation systems. The Compare (Pass/Fail) function makes repetitive testing fast and efficient, while the remote probe reduces time spent on hard-to-reach test points.
Why Choose the Fluke 1507?
Rated CAT IV 600V and built to survive 1-meter drop tests, this tester is engineered for demanding field environments. Auto power-off and auto-discharge of capacitive voltage add both safety and convenience, while the backlit display ensures clear readings in any lighting condition. It runs on four AA batteries and delivers over 1000 insulation tests per charge.
FEATURES
- 5 test voltages: 50V, 100V, 250V, 500V, 1000V
- Auto PI and DAR calculations
- Compare (Pass/Fail) function
- Insulation range: 0.01 MΩ to 10 GΩ
- Live circuit detection (>30V inhibit)
- Auto-discharge of capacitive voltage
- Remote test probe included
- Large backlit display
- Auto power off
- CAT IV 600V safety rated
SPECIFICATIONS
- Test Voltages: 50V, 100V, 250V, 500V, 1000V
- Insulation Range: 0.01 MΩ to 10 GΩ
- AC/DC Voltage: 0.1V to 600V
- Earth Bond Resistance: 0.01Ω to 20.00kΩ
- Short Circuit Current: 1mA nominal
- Safety Rating: CAT IV 600V
- IP Rating: IP40
- Operating Temperature: -20°C to 55°C
- Size: 5.0 × 10.0 × 20.3 cm
- Weight: 550g
- Batteries: 4 × AA (1000+ insulation tests)
- Manufacturer: Fluke
