Description

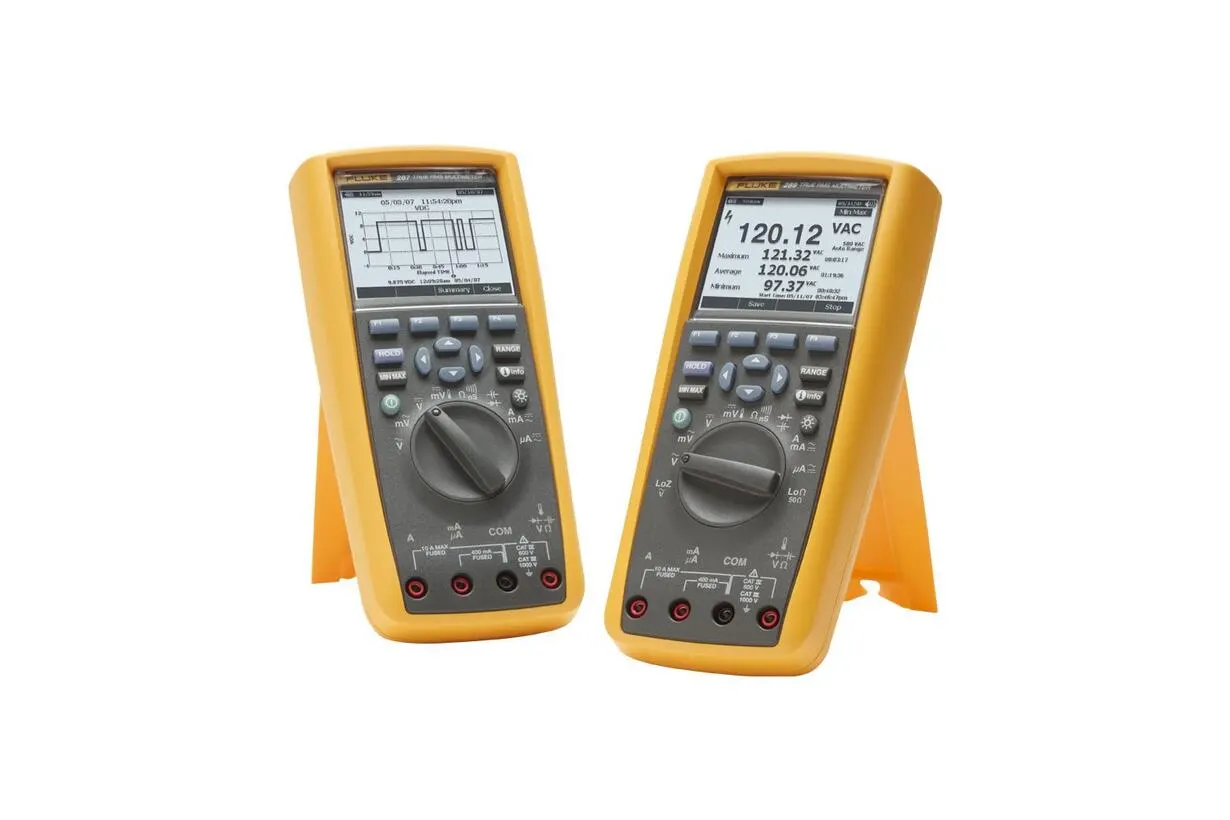

The Fluke 289 True-RMS Industrial Data Logging Multimeter is the most advanced handheld multimeter in the Fluke lineup — purpose-built for engineers and industrial technicians who need to capture, log, and analyze electrical data in the field. With a large 50,000-count dot matrix display, built-in TrendCapture data logging, and memory for up to 10,000 recorded events, the Fluke 289 turns complex troubleshooting tasks into manageable, documented processes — making it the go-to instrument for maintenance professionals across Karachi and Pakistan.

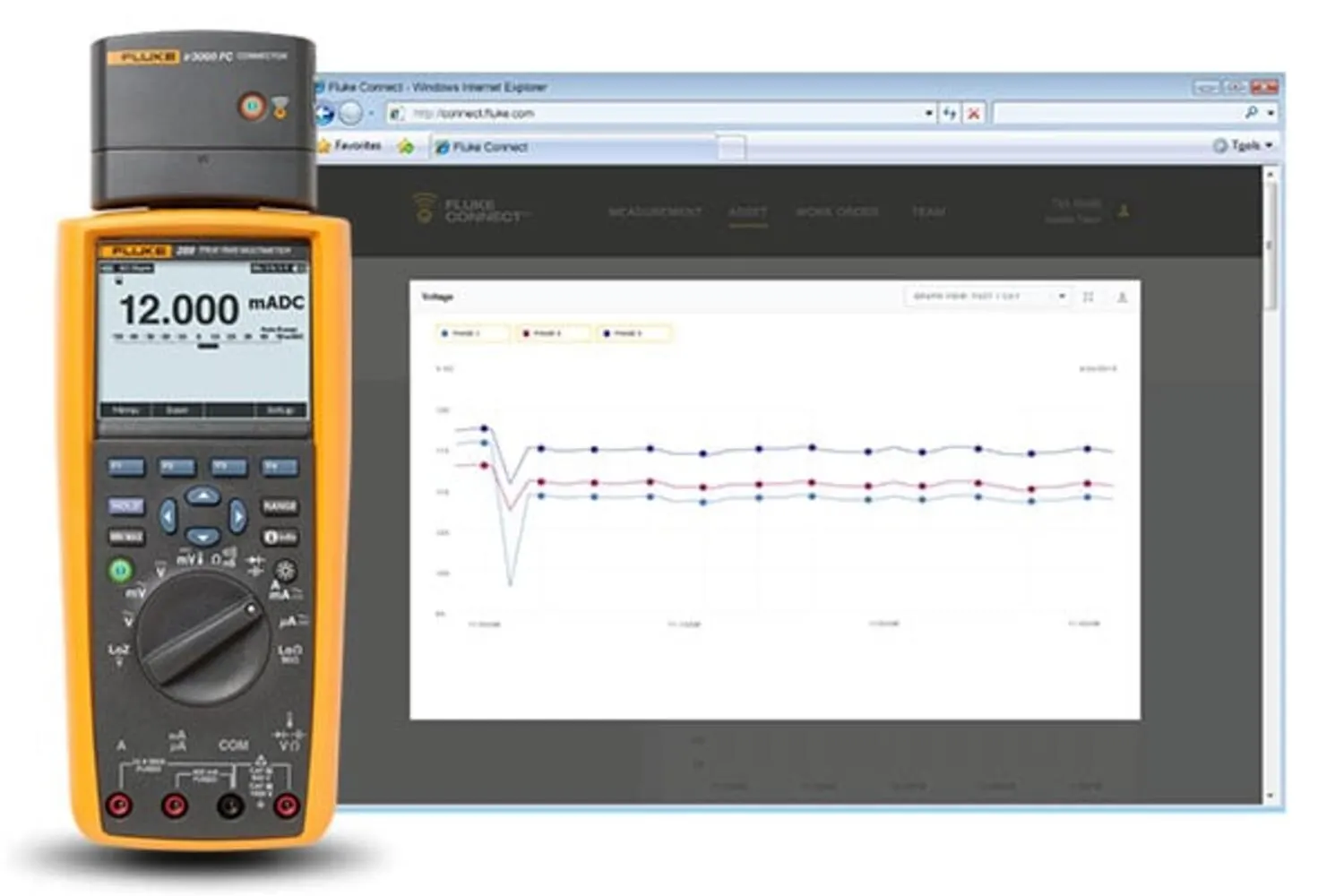

The 289 goes far beyond basic measurement. Its logging function enables unattended monitoring of signals over time, and TrendCapture lets you graphically review logged readings directly on the meter — with up to 14x zoom — without needing a PC. Peak capture records transients as fast as 250μs, while the real-time clock automatically time-stamps every saved reading. Optional FlukeView Forms software lets you convert data into professional reports for documentation and analysis.

Why Choose the Fluke 289?

With a resistance range up to 500MΩ, 1μV DC resolution, dBV/dBm measurements, duty cycle, pulse width, low-pass filter, LoZ voltage mode, and conductance measurement — the 289 packs the capabilities of a bench instrument into a rugged handheld form. Rated CAT III 1000V and CAT IV 600V, and backed by a lifetime warranty, it is built to handle the most demanding industrial environments day after day.

FEATURES

• True-RMS AC voltage and current (up to 10A, 20A for 30s)
• 50,000-count dot matrix display with white backlight
• TrendCapture data logging (up to 10,000 events)
• 14x zoom on trend for on-screen data analysis
• Peak capture (transients as fast as 250μs)
• Real-time clock with auto time-stamp
• Low-pass filter (smoothing mode)
• LoZ voltage measurement mode
• dBV/dBm measurement
• Duty cycle and pulse width measurement
• Resistance up to 500MΩ, conductance 50.00nS
• Isolated optical PC interface
• Compatible with FlukeView Forms software
• CAT III 1000V / CAT IV 600V safety rated
• Lifetime warranty

SPECIFICATIONS

• AC/DC Voltage: up to 1000V
• Resolution: 50,000 counts
• DC mV Resolution: 1μV
• Resistance: up to 500MΩ
• Capacitance: up to 10,000μF
• Frequency: up to 100kHz
• Current: up to 10A (20A for 30s)
• Peak Capture: 250μs
• Data Logging: up to 10,000 events
• Safety Rating: CAT III 1000V / CAT IV 600V
• Manufacturer: Fluke
