Description

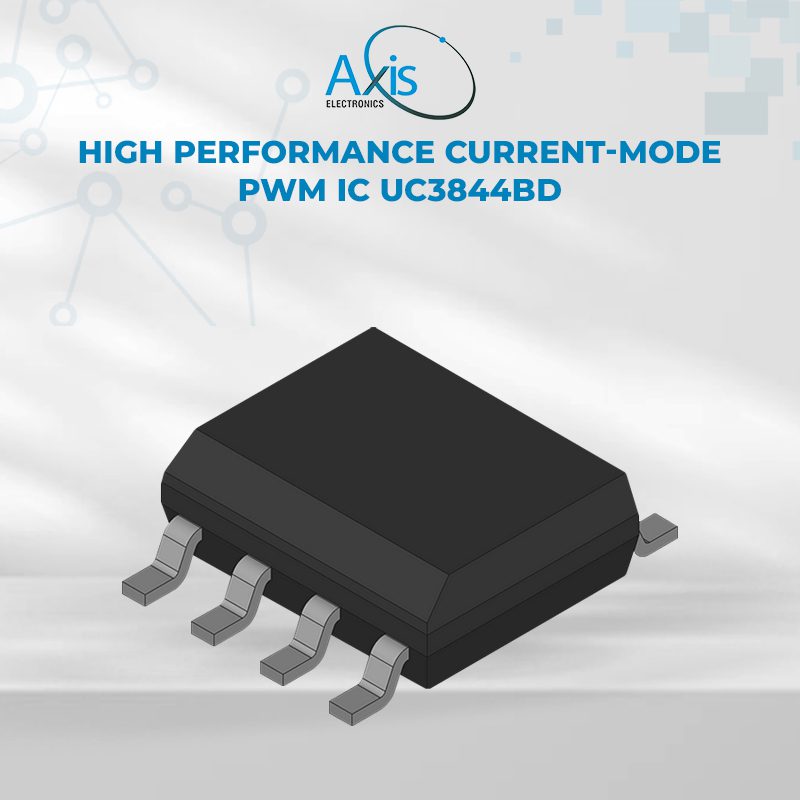

The UC3844BD is a fixed-frequency current-mode PWM controller designed to implement off-line or DC-to-DC fixed frequency power-conversion control schemes with minimal external components. It integrates:

• trimmed oscillator for precise duty-cycle control
• precision reference
• current sense and PWM comparator
• internal under-voltage lockout (UVLO)
• high-current totem-pole output suitable for driving external MOSFETs or switching transistors.

This makes it ideal for switch-mode power supplies (SMPS), DC-DC converters, boost/fly back or other topologies, and general power-management/voltage-regulator designs.

FEATURES

• Supply Voltage: ~10 V – 36 V
• Operating Temp Range: 0 °C to 70 °C
• Operating Frequency: Up to ~500 kHz
• Peak Output Drive: ~±1 A
• Topology Support: Boost, Flyback, etc.
• UVLO (Under voltage Lockout): Yes
• Duty Cycle Max: ~48 %
• Output Type: Totem-pole transistor driver
• Mounting Style: Surface Mount

SPECIFICATION

• Dimension: 4.9 × 3.9 × 1.75 mm
• Additional information
• Gross weight: 0.5 g
• Manufacturer part number: UC3844BD
