Description

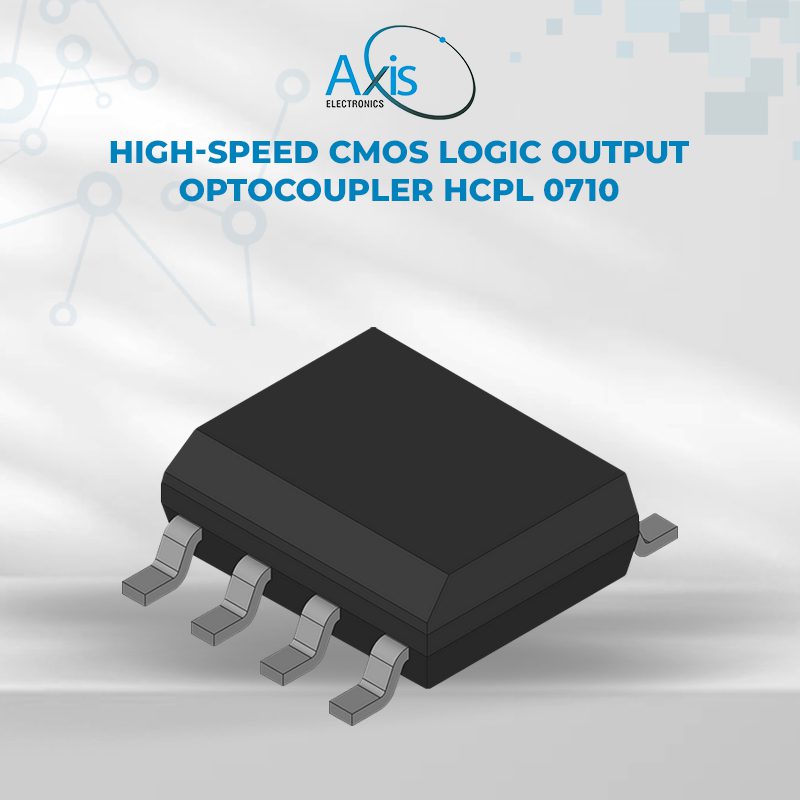

The HCPL-0710 is a high-speed optocoupler / optoisolator designed to provide galvanic isolation between two circuits while transmitting digital signals. It integrates a high-speed LED input and a CMOS detector/driver output in a compact 8-pin SOIC (SOP-8) surface-mount package. The device uses advanced CMOS technology to achieve very fast propagation delays with low power consumption, making it ideal for digital isolation in communication and microprocessor interfaces.

FEATURES

• Number of Channels: 1 Channel
• Isolation Voltage: 3750 Vrms (UL 1577)
• Data Rate: 12.5 Mb/s
• Common-Mode Transient Immunity: ≥ 10 kV/µs
• Output Type: CMOS / Push-Pull Totem-Pole
• Supply Voltage: 4.5 V – 5.5 V
• Output Current per Channel: 10 mA
• Propagation Delay: 40 ns max
• Rise / Fall Time: ~13 ns / ~5 ns
• Operating Temp. Range: -40 °C to +100 °C
• Mounting Style: Surface Mount

SPECIFICATION

• Dimension: 5.08 × 3.94 × 3.17 mm
• Additional information
• Gross weight: 0.133 g
• Manufacturer part number: HCPL-0710
