Description

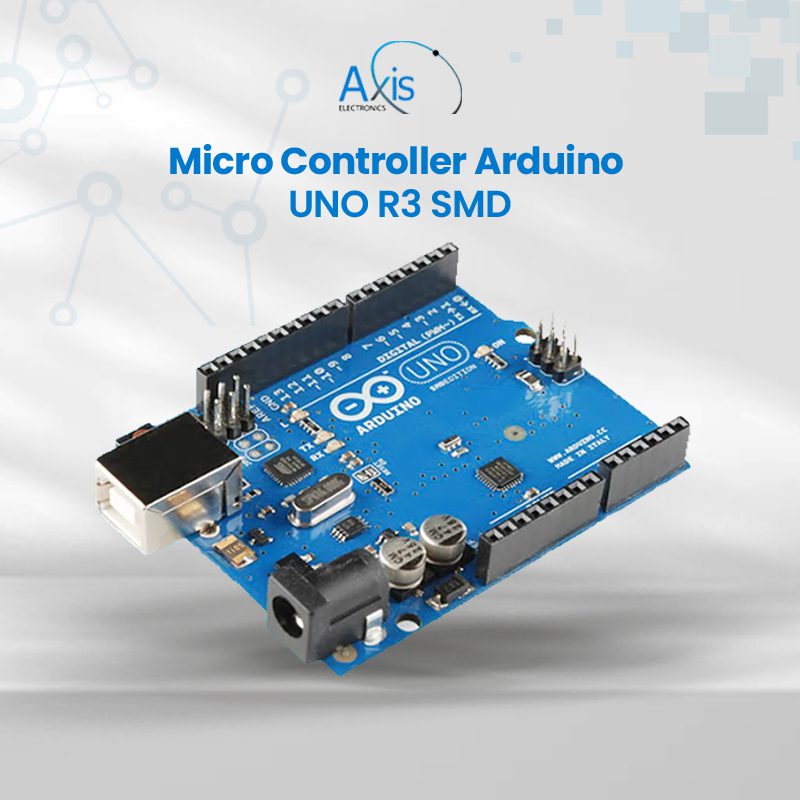

The Arduino UNO R3 SMD is a micro controller board based on the ATmega328. It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, a 16 MHz ceramic resonator (CSTCE16M0V53-R0), a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the micro controller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started. The Uno differs from all preceding boards in that it does not use the FTDI USB-to-serial driver chip. The micro controller model of this board is the same as the original one (Atmega328). The only difference between micro controllers is ther package. Original one has a DIP package but the clone one has SMD package micro controller.

FEATURES

• OPERATING VOLTAGE: 5V
• INPUT VOLTAGE (RECOMMENDED): 7-12V
• INPUT VOLTAGE (LIMIT): 6-20V
• DIGITAL I/O PINS: 14 (of which 6 provide PWM output)
• PWM DIGITAL I/O PINS: 6
• ANALOG INPUT PINS: 6
• DC CURRENT PER I/O PIN: 20 mA
• DC CURRENT FOR 3.3V PIN: 50 mA
• FLASH MEMORY: 32 KB (ATmega328P) of which 0.5 KB used by bootloader
• SRAM: 2 KB (ATmega328P)
• EEPROM: 1 KB (ATmega328P)
• CLOCK SPEED: 16 MHz
• LED_BUILTIN: 13
• LENGTH: 68.6 mm
• WIDTH: 53.4 mm
• Additional information
• Gross weight: 25 g
• Manufacturer part number: Arduino UNO R3 SMD
