Description

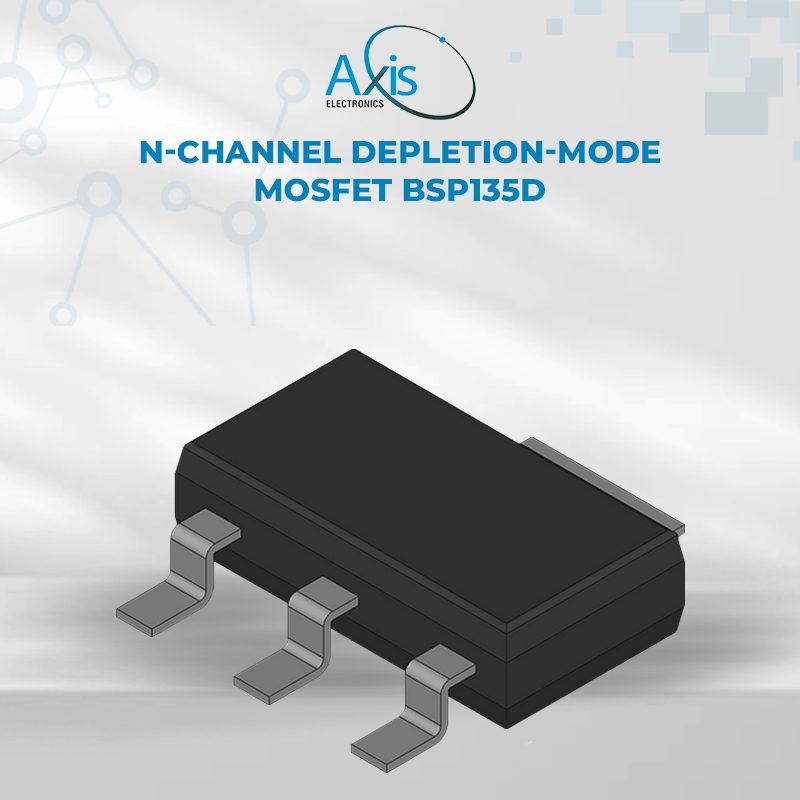

The BSP135D is a N-channel depletion-mode small-signal MOSFET designed for surface-mount applications. It features high voltage handling up to 600 V, low drain current, depletion-mode operation, and a compact SOT-223 package. It is intended for use in power supplies, current regulators, over-voltage protection, in-rush current limiting, and other general MOSFET usage where depletion-mode behavior is desired.

FEATURES

• Drain-Source Voltage: 600 V
• Continuous Drain Current: 0.12 A
• Pulsed Drain Current: 0.48 A
• Power Dissipation: ~1.8 W
• Gate-Source Threshold Voltage: approx –1.4 V
• RDS(on): ~45 Ω @ 10 V
• Operating Temp. Range: –55 °C to +150 °C
• ESD Rating: 250 – 500 V class
• Mounting Style: Surface Mount

SPECIFICATION

• Dimension: 6.5 × 3.7 × 1.5 mm
• Additional information
• Gross weight: 0.39 g
• Manufacturer part number: BSP135D
