Description

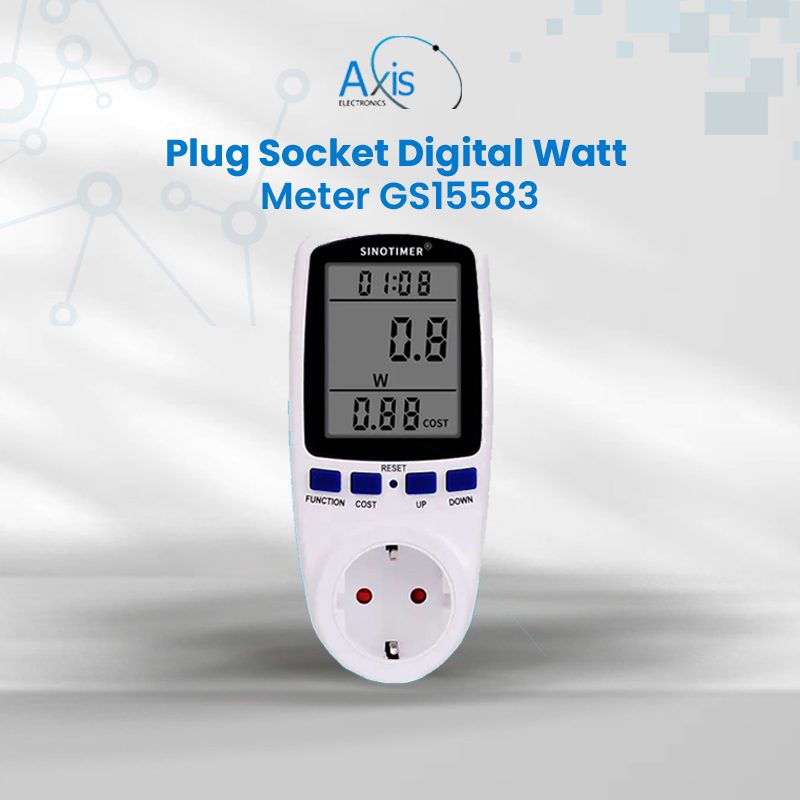

GS15583 EU BR UK Plug Socket Digital Watt Meter Power Consumption Watt Energy Meter KWh AC 220 V 110 V Electricity Analyzers Monitors.
FEATURES
- Large LCD display for easy reading.
- Measure: Voltage, Frequency, Current, Power Factor, Wattage, minimum & maximum Wattage and record cumulative Kilowatt-hour KWh, Time, Date and Electricity Expenses.
- Seven display modes, transferred by pressing “FUNCTION” button.
- Overload warning displayed on LCD.
- Resetting for abnormal display or no-response of button.
- Built-in 3.6 V rechargeable battery (NI-MH) to store electricity and saving setting.
- Easy electricity price setting.
- Easy to Monitor Your Electricity Bill: Electricity price setting by pressing OK, VALUE, DISPLAY and SET button
- Built-in Battery Backup: 2 X 1.5 V rechargeable batteries allows meter to be moved and still visible without losing readings.
- Measure Various Parameters + Overload Protection Function: Power (W), Energy (kWh), Volts, Amps, Hertz, Power Factor and Maximum Power (W), Time, Days ( Your electricity bills are
- vitally based on kWh)
- Large & Clear LCD Display for Easy Reading
SPECIFICATION
- Operating Voltage: 230 V ~ 50 Hz for EU / UK / FR / BR / AU plug, 120 V ~ 60 Hz for US plug
- Operating Current: Max.16 A for EU/ FR/BR plug, Max.15 A for US plug, Max.13 A for UK plug, Max.10 A for AU plug
- Wide Voltage Range: 230 V ~ 250 V for EU / UK / FR / BR / AU plug, 110 V ~ 130 V for US plug
- Timing display range: 0 second—-9999 days
- Wattage display (watts): 0 W ~ 3680 W
- Voltage display range: 0 V ~ 9999 V
- Current display (amps): 0.0 ~ 16.0 A
- Frequency display: 0 Hz ~ 9999 Hz
- Minimum wattage display range: 0.0 W ~ 3680 W
- Maximum wattage display range: 0.0 W ~ 3680 W
- Price display range: 0.00 KWH ~ 99.99 KWH
- Total kilowatt-hour and cost display: 0.000 KWH ~ 9999 KWH
- DIY supplies: electric
- Dimension: 155 × 73 × 75 mm
- Additional information
- Gross weight: 155 g
- Manufacturer part number: GS-15583
