Description

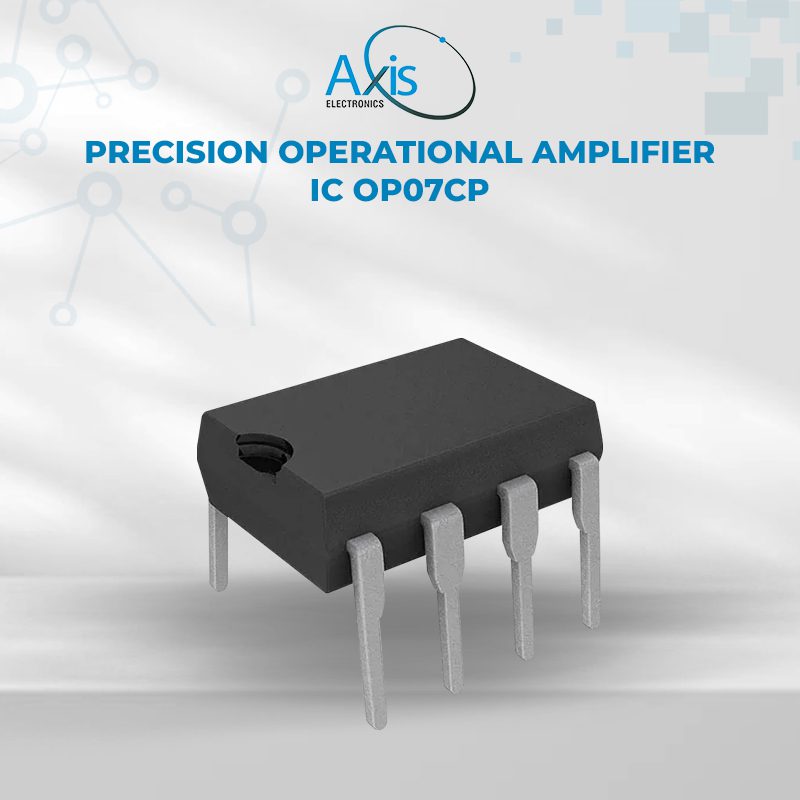

The OP07CP is a high‑precision, low‑offset single operational amplifier (op‑amp) in an 8‑pin DIP (PDIP‑8) through‑hole package. It delivers excellent accuracy, low input offset voltage and stable performance over a wide supply range, making it ideal for precision analog applications such as instrumentation, sensors, industrial control, and precision filters.

FEATURES

• Number of Channels: 1
• Supply Voltage: ±3 V to ±18 V
• Gain Bandwidth: 600 kHz
• Slew Rate: 0.3 V/µs
• Input Offset Voltage: ~0.25–0.60 mV
• Input Bias Current: ~7–14 nA
• CMRR: ~100–120 dB
• Operating Temp: 0 °C to +70 °C
• Typical Noise: ~9–10.5 nV/√Hz
• Typical Open Loop Gain: ~112 dB
• Mounting Style: Through Hole

SPECIFICATION

• Dimension: 9.81 × 6.35 × 4.57 mm
• Additional information
• Gross weight: 0.471 g
• Manufacturer part number: OP07CP
