Description

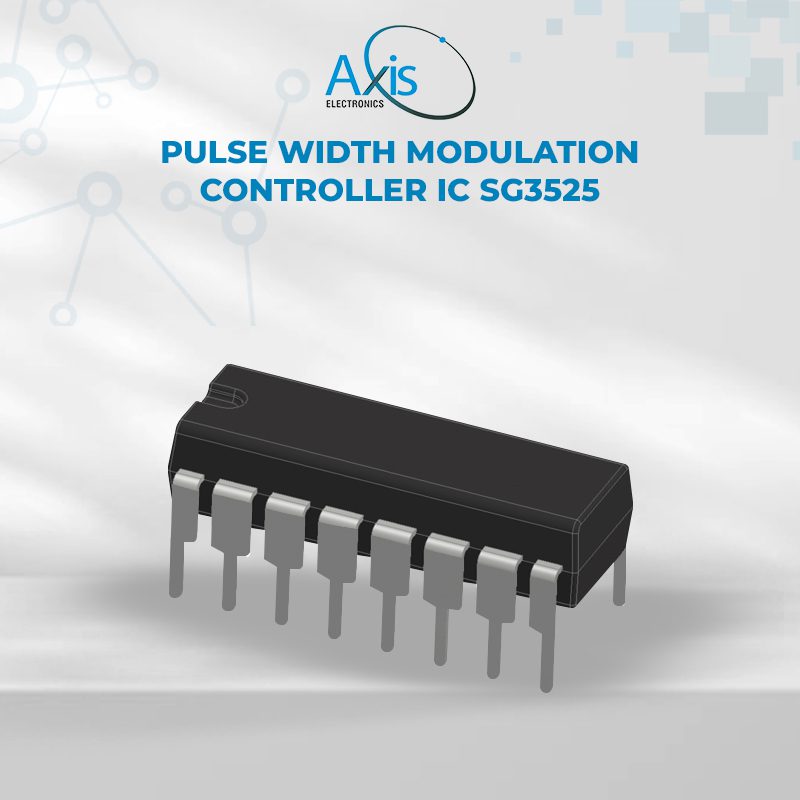

The SG3525 is a high-performance pulse-width modulator (PWM) control IC intended for use in switch-mode power supplies, inverters, DC-DC converters, and other power control systems. It integrates functions such as a precision reference, dual PWM outputs, an oscillator, soft-start circuitry, under-voltage lockout, and dead-time control, which reduce external component count and improve design flexibility. The device operates over a wide supply range and is available in a 16-pin dual in-line package (DIP) or SOIC.

FEATURES

• Supply Voltage (VCC): ~8 V to ~35 V (up to ~40 V absolute max)
• Reference Output: +5.1 V ±1 %
• Oscillator Range: ~100 Hz – ~400 kHz (design dependent)
• Power Dissipation: ~1000 mW typical
• Operating Temperature: –65 °C to +150 °C (junction)

SPECIFICATION

• Dimension: 20.3 × 6.35 × 3.3 mm
• Additional information
• Gross weight: 0.5 g
• Manufacturer part number: SG3525
