Description

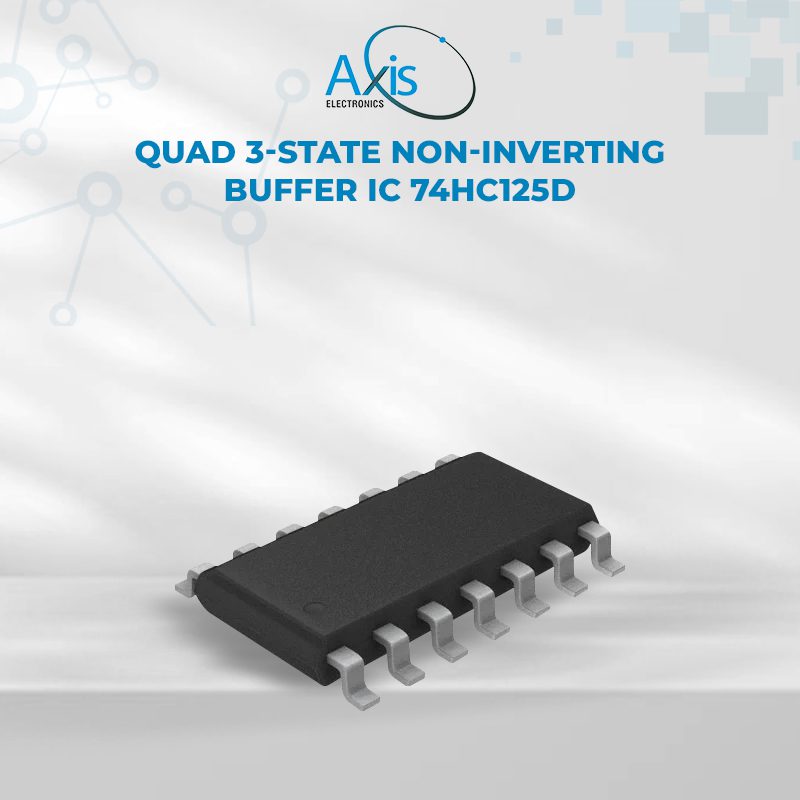

The 74HC125D is a CMOS Quad Buffer/Line Driver IC featuring four independent non-inverting buffer channels with 3-state outputs. Each buffer’s output can be disabled (high-impedance) using its respective output enable (OE) input. This allows the IC to interface multiple digital circuits to shared buses or signal lines without interference. The device adheres to standard 74HC logic family specifications, offering low power dissipation and high noise immunity.

FEATURES

• Number of Buffers: 4
• Output Type: 3-state
• Supply Voltage: 2.0 V – 6.0 V
• Operating Temp. Range: -40 °C to +85 °C / up to +125 °C
• Output Current: ~±7.8 mA
• Propagation Delay: ~10-30 ns
• ESD Protection: >2000 V
• Mounting Style: Surface Mount

SPECIFICATION

• Dimension: 8.65 × 3.9 × 1.75 mm
• Additional information
• Gross weight: 0.25 g
• Manufacturer part number: 74HC125D
