Description

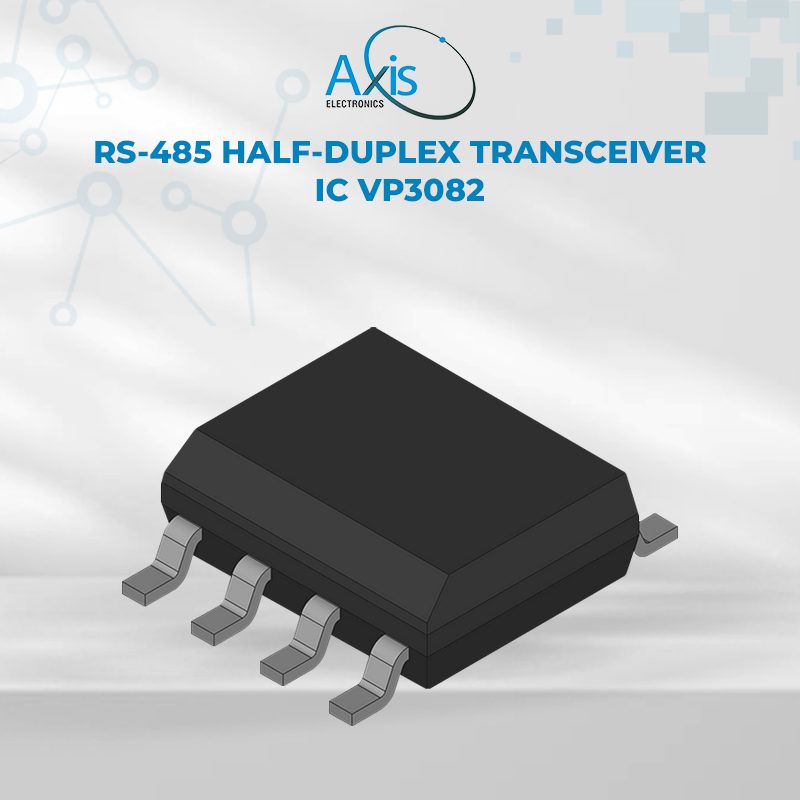

The SN65HVD3082E (marked VP3082) is a low‑power RS‑485 half‑duplex transceiver integrated circuit in a Small Outline Package (SOP‑8). It is designed to transmit and receive balanced differential data over long cabling systems per the TIA/EIA‑485A standard and provides reliable serial communication at moderate speeds.

FEATURES

• Driver/Receiver Count: 1 / 1
• Duplex Mode: Half
• Differential Output Voltage: ~1.5 V min
• Input Sensitivity: ±200 mV
• Propagation Delay (Driver): ~25 ns
• Propagation Delay (Receiver): ~40 ns
• Mounting Style: Surface Mount

SPECIFICATION

• Dimension: 4.9 × 3.9 × 1.5 mm
• Additional information
• Gross weight: 0.10 g
• Manufacturer part number: VP3082
