Description

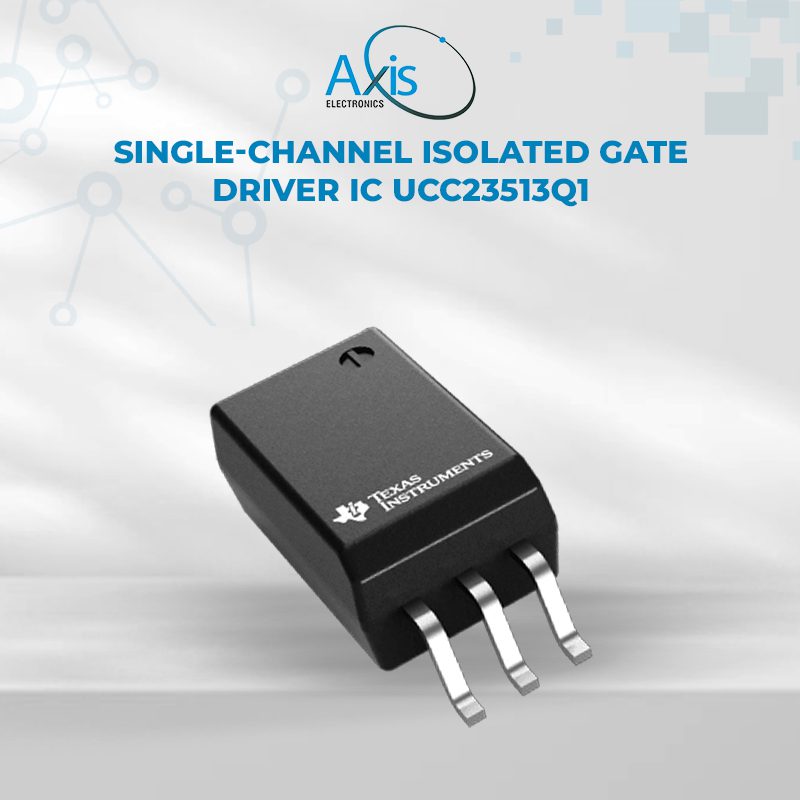

The UCC23513Q1 is an opto-compatible, single-channel isolated gate driver designed to drive power switches such as IGBTs, MOSFETs, and SiC MOSFETs. It delivers high peak output currents (source and sink) and reinforced isolation to meet automotive and industrial application requirements. The device supports high supply voltages and improves performance and reliability over traditional optocoupler drivers, while preserving pin-to-pin compatibility.

FEATURES

• Number of Channels: 1
• Isolation Rating: 5.7 kVRMS reinforced
• Peak Output Current: 4.5 A source / 5.3 A sink
• Output Voltage Supply: 14 V to 33 V
• Common-Mode Transient Immunity: 150 kV/µs
• Operating Temp. Range: –40 °C to +125 °C
• Propagation Delay: 105 ns
• Pulse Width Distortion: 35 ns
• Part-to-Part Delay Matching: 25 ns
• Input Threshold: ~4 mA
• Mounting Style: Surface Mount

SPECIFICATION

• Dimension: 4.9 × 3.9 × 1.27 mm
• Additional information
• Gross weight: 0.02 g
• Manufacturer part number: UCC23513Q1
