Description

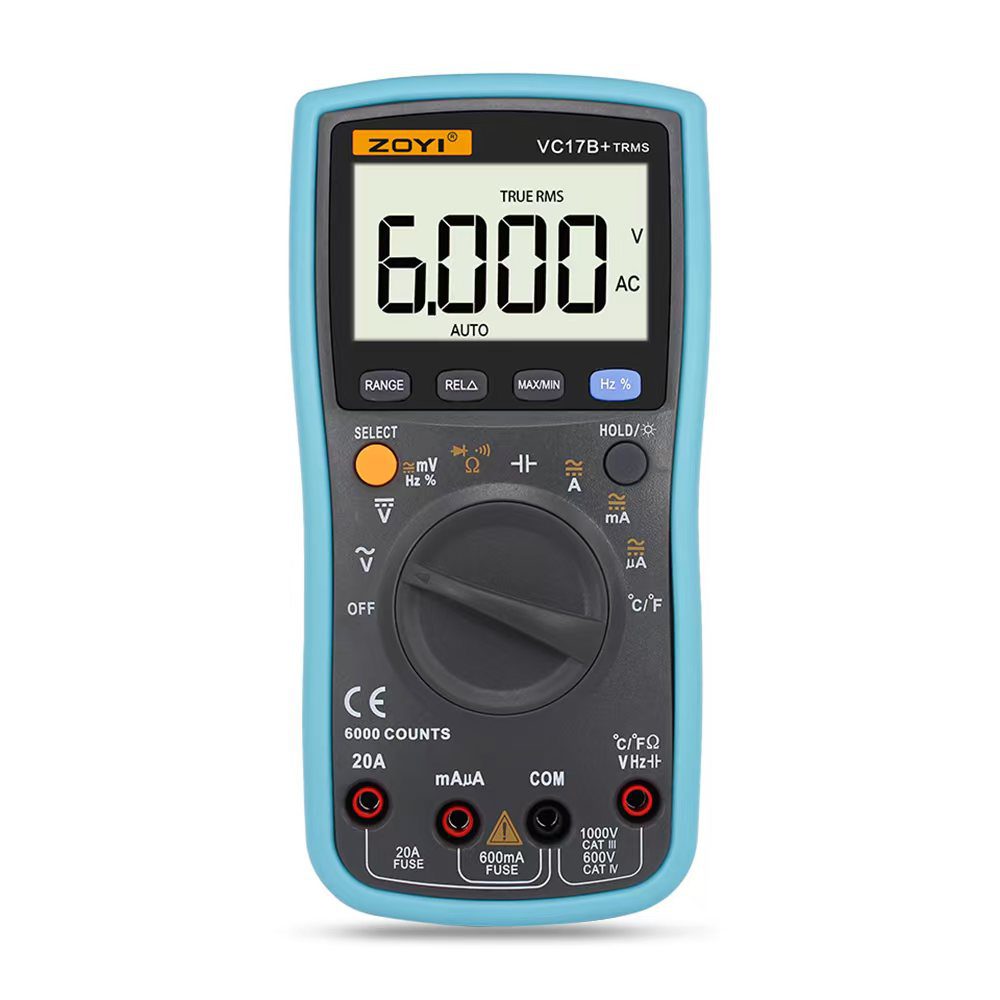

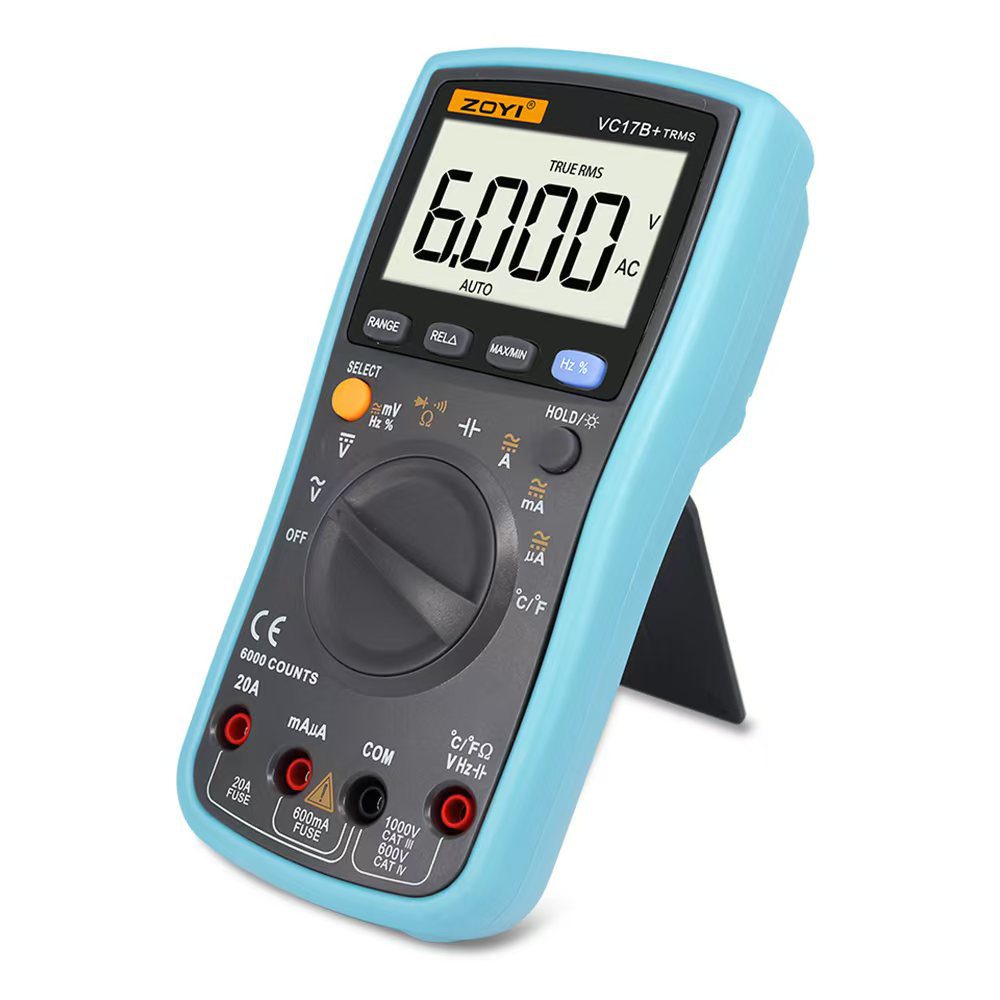

The ZOYI VC17B+ is an auto/manual ranging digital multimeter using precision A/D conversion at its core. It is built for stable, reliable performance and is suitable for both professional and home electrical work.

FEATURES

• Auto/Manual ranging
• True RMS measurement
• 550V overload protection on resistance and capacitance ranges
• Large backlit LCD display, 6000 counts
• MAX/MIN data hold
• Polarity identification and low voltage indication
• 20A high current measurement

SPECIFICATION

• AC Voltage: up to 750V
• DC Voltage: up to 1000V
• Current: up to 20A (AC/DC)
• Resistance: up to 60MΩ
• Capacitance: up to 10mF
• Safety Rating: CAT IV 600V / CAT III 1000V
• Manufacturer: ZOYI
